Keezer Build

Post by GillettBreweryCnslt » Tue Nov 20, 2012 1:49 pm

Hey Everyone,

So there are a thousand DIY threads on the net for keezer builds, so I won't go into the fine details. Ask away if interested. But I wanted to post picks. The build took about four hours spread over a week but could've been done over a weekend if I was efficient at such things. So here are the stats:

Freezer: 7.2 cu ft Woods freezer
Taps: 3 chrome, 2 perlick
Collar: ~10 inch made from 1x10 knotty pine and doubled-up 1" pink foamboard
Temp Controller: stc-1000
Drip-tray: Magnetic shelves from Busy bee
What's on tap (left to right): Uncommon Wit-ESB, Tankhouse Ale Clone, Nut Brown, Blackberry Wheat, Root Beer
Left to be done: acquire more tap handles, stain the wood, paint the freezer, paint the top of the freezer with chalk-board paint so I can write what's on tap easily.

This is the concept I started with, forgot the controller on the sketchup, but would still like to incorporate the sign somehow.

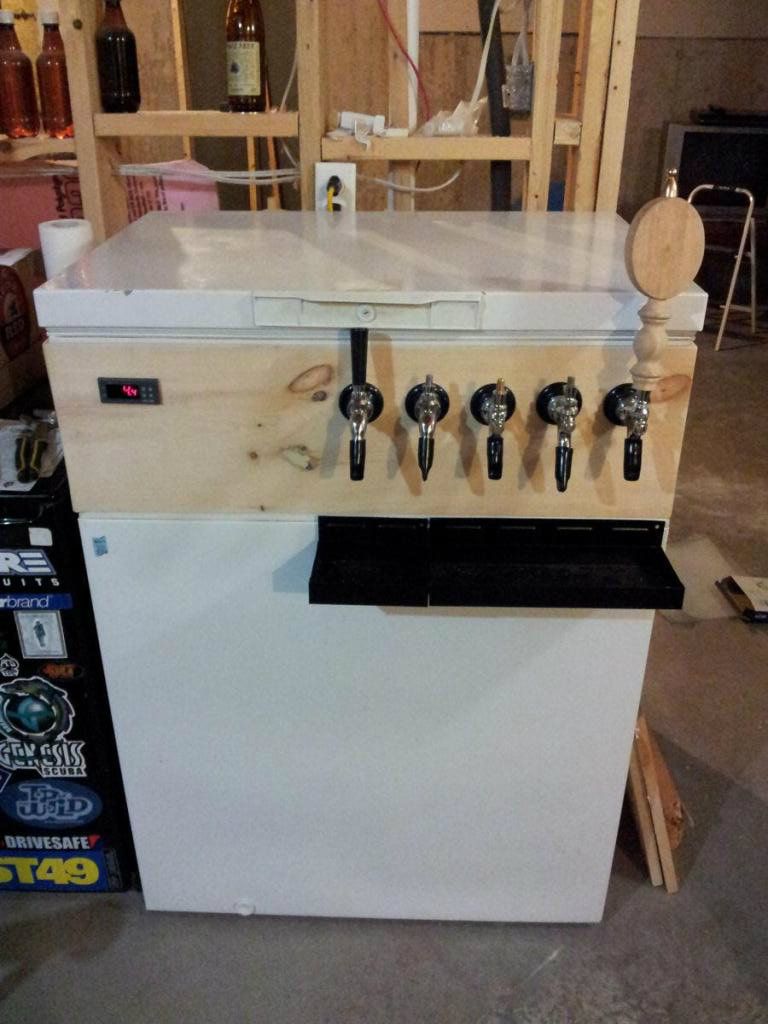

How it looks today

I got five kegs in there by adding the 9.5 inch collar, barely fit in my 5# CO2 tank, but its there. I just used 4 "t"'s to split the lines. Someday I'll move to a manifold or multi-regulator system.

View looking to the right side to show the keg on the hump

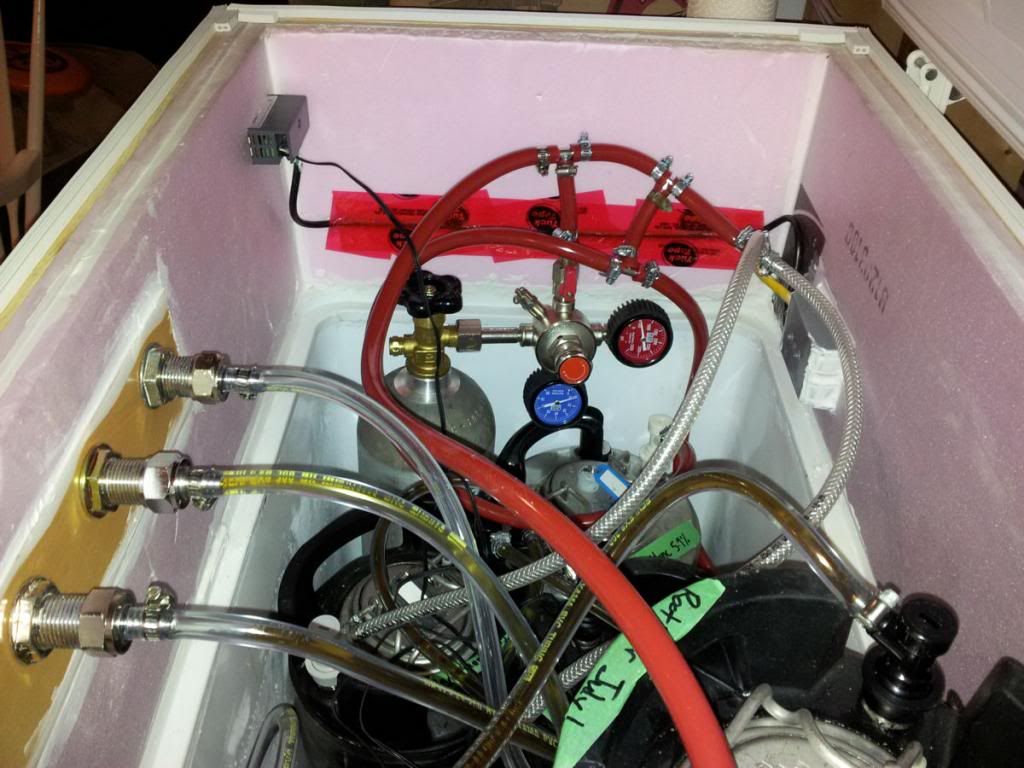

View looking to the left side to show the mess of CO2 lines (and not a single leak! *knocks on wood*)

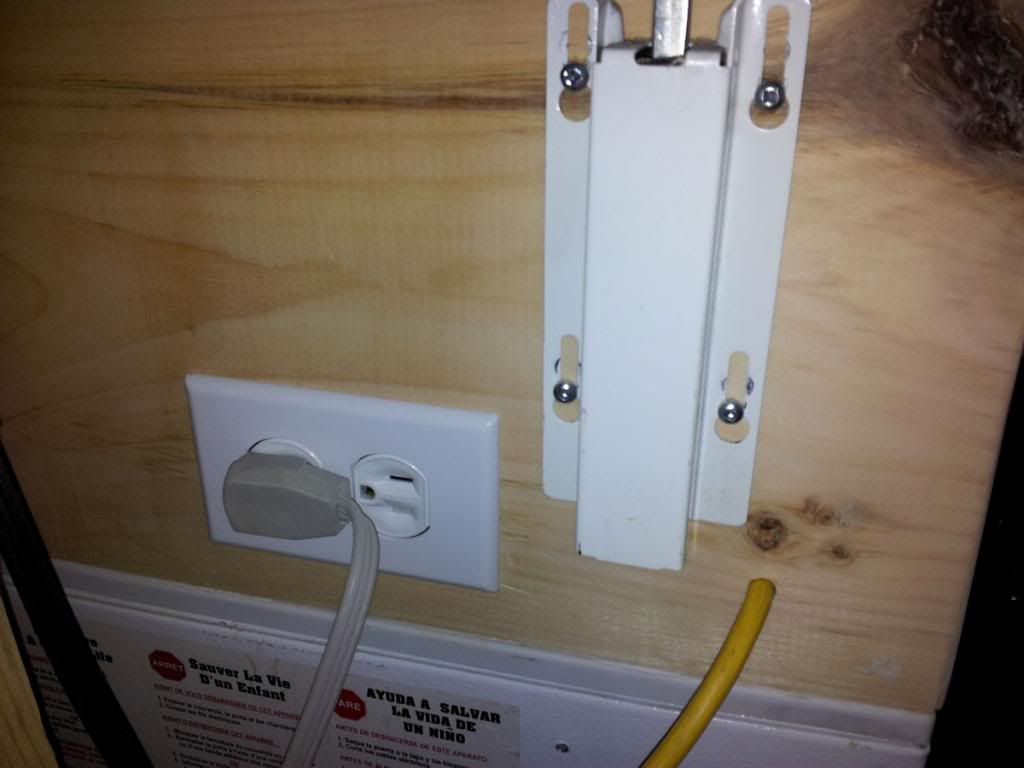

The back wiring. I wired the STC-1000 into an outlet for the freezer to plug into. I programmed it to sit at 4C, have a variance of 1C and a cycle of 10min. Image

Was drinking beer out of it last night. I'm quite pleased.

Thanks
Last edited by GillettBreweryCnslt on Thu Nov 22, 2012 9:34 am, edited 1 time in total.

User avatar
TJ Brew
Verified User
Verified User
Posts: 216
Joined: Mon Oct 31, 2011 4:12 pm
Name: Trevor Jamieson
Location: Toronto, ON

Re: Keezer Build

Post by TJ Brew » Tue Nov 20, 2012 2:52 pm

Looks great Dave!
On Tap "in bottles": winter beer (spiced beer, nutmeg, cinnamon, star anise, ginger, cloves)
In Secondary:
In Primary: winter beer (spiced beer, nutmeg, cinnamon, star anise, ginger, cloves)
Up Next:

-------------------------------------------------------------------------------------------------------------------
"Always do sober what you said you'd do drunk. That will teach you to keep your mouth shut." - Ernest Hemingway

User avatar
jeffsmith
Verified User
Verified User
Posts: 4922
Joined: Tue Apr 26, 2011 4:18 pm
Name: Jeff Smith
Location: Amherst, NS
Contact:

Re: Keezer Build

Post by jeffsmith » Tue Nov 20, 2012 2:55 pm

Well done!

User avatar
canuck
Award Winner 6
Award Winner 6
Posts: 1960
Joined: Wed Mar 07, 2012 11:54 am
Name: Shane
Location: Quispamsis, NB
Contact:

Re: Keezer Build

Post by canuck » Tue Nov 20, 2012 3:00 pm

Nicely done, looks great! :rockin:

User avatar
mr x
Mod Award Winner
Mod Award Winner
Posts: 13764
Joined: Fri Sep 24, 2010 5:30 pm
Location: Halifax/New Glasgow

Re: Keezer Build

Post by mr x » Tue Nov 20, 2012 4:04 pm

:thumbup:
At Alexander Keith's we follow the recipes first developed by the great brewmaster to the absolute letter. :wtf:

User avatar
bluenose
Verified User
Verified User
Posts: 1984
Joined: Tue Dec 20, 2011 8:49 pm
Location: New Glasgow

Re: Keezer Build

Post by bluenose » Tue Nov 20, 2012 4:14 pm

congrats on a mighty fine beer dewarmer
:spilly:
This is my signature. There are many like it, but this one is mine.

Hoptimus Prime
Registered User
Registered User
Posts: 6
Joined: Mon Nov 26, 2012 2:24 pm
Name: Ian

Re: Keezer Build

Post by Hoptimus Prime » Mon Nov 26, 2012 2:56 pm

your Kreezer looks great, on the list to build down the road

User avatar
Araxi
Verified User
Verified User
Posts: 286
Joined: Sat Feb 05, 2011 6:43 pm
Name: Bruce
Location: Riverview

Re: Keezer Build

Post by Araxi » Mon Nov 26, 2012 8:45 pm

Cool!

Newfie_Brewer
Registered User
Registered User
Posts: 6
Joined: Mon Oct 22, 2012 9:33 am
Location: Conception Bay South, NL

Re: Keezer Build

Post by Newfie_Brewer » Thu Nov 29, 2012 12:02 pm

Very Nice!

This is the way I should have went instead of using two towers.

User avatar
GillettBreweryCnslt
Vendor
Vendor
Posts: 1935
Joined: Thu Nov 11, 2010 11:24 am
Name: David Gillett
Location: Hammonds Plains
Contact:

Re: Keezer Build

Post by GillettBreweryCnslt » Thu Nov 29, 2012 12:42 pm

I considered using towers but I also wanted to build the collar to get the 5th keg in there. I may decide to change the keezer into a coffin-keezer at some point, and if I do I'll build the tower myself like so many others have done here: http://www.homebrewtalk.com/f51/coffin- ... st-256871/" onclick="window.open(this.href);return false;

User avatar
GillettBreweryCnslt
Vendor
Vendor
Posts: 1935
Joined: Thu Nov 11, 2010 11:24 am
Name: David Gillett
Location: Hammonds Plains
Contact:

Re: Keezer Build

Post by GillettBreweryCnslt » Wed Dec 05, 2012 12:20 pm

So I got around to painting the keezer and dealing with how I'm going to label the taps. I still need to stain the wood, but maybe not, the natural look is growing on me. Regardless I've got to seal it to prevent rot/mould. But here are a couple more pics!

Here's the front view:

Here's the top view:

User avatar
jeffsmith
Verified User
Verified User
Posts: 4922
Joined: Tue Apr 26, 2011 4:18 pm
Name: Jeff Smith
Location: Amherst, NS
Contact:

Re: Keezer Build

Post by jeffsmith » Wed Dec 05, 2012 12:27 pm

Nice! Liking the chalkboard paint on the lid.

User avatar
mr x
Mod Award Winner
Mod Award Winner
Posts: 13764
Joined: Fri Sep 24, 2010 5:30 pm
Location: Halifax/New Glasgow

Re: Keezer Build

Post by mr x » Wed Dec 05, 2012 12:32 pm

That's looking really nice Dave.
At Alexander Keith's we follow the recipes first developed by the great brewmaster to the absolute letter. :wtf:

User avatar
LeafMan66_67
Award Winner 2
Award Winner 2
Posts: 4600
Joined: Fri Mar 02, 2012 7:10 am
Name: Derek Stapleton
Location: Lower Sackville, NS

Re: Keezer Build

Post by LeafMan66_67 » Wed Dec 05, 2012 12:40 pm

Looks great! Nice job!
"He was a wise man who invented beer." - Plato

User avatar
Jimmy
Site Admin Award Winner
Site Admin Award Winner
Posts: 6984
Joined: Wed Sep 22, 2010 6:35 pm
Location: Halifax, NS

Re: Keezer Build

Post by Jimmy » Wed Dec 05, 2012 1:03 pm

Fishdisease wrote:Here's the front view:
You a diver?

User avatar
GillettBreweryCnslt
Vendor
Vendor
Posts: 1935
Joined: Thu Nov 11, 2010 11:24 am
Name: David Gillett
Location: Hammonds Plains
Contact:

Re: Keezer Build

Post by GillettBreweryCnslt » Wed Dec 05, 2012 3:19 pm

Jimmy wrote:You a diver?
Yep, have my open water advanced. I haven't been the water in a couple of years and I sold most of my gear when I moved to Ontario a few years back, but I'm always up for an adventure. I could always be convinced to bottle and age some beer at the bottom of the ocean too

http://www.vintecclub.com.au/ageing-wine-under-the-sea/" onclick="window.open(this.href);return false;

chalmers
Moderator
Moderator
Posts: 5604
Joined: Thu Sep 23, 2010 4:17 pm
Name: Chris
Location: Halifax / On The Road Again
Contact:

Re: Keezer Build

Post by chalmers » Sat Dec 08, 2012 10:57 am

Fishdisease wrote:
Jimmy wrote:You a diver?
Yep, have my open water advanced.
Posers, the both of you!

User avatar
dexter
Verified User
Verified User
Posts: 994
Joined: Fri Oct 28, 2011 11:59 am
Name: Phil
Location: Halifax

Re: Keezer Build

Post by dexter » Sat Dec 08, 2012 11:46 am

That's sharp looking nicevjob!

User avatar
Jimmy
Site Admin Award Winner
Site Admin Award Winner
Posts: 6984
Joined: Wed Sep 22, 2010 6:35 pm
Location: Halifax, NS

Re: Keezer Build

Post by Jimmy » Sat Dec 08, 2012 12:25 pm

chalmers wrote:
Fishdisease wrote:
Jimmy wrote:You a diver?
Yep, have my open water advanced.
Posers, the both of you!
:lol:

I didn't claim to dive

Sent from my Android using Tapatalk.

User avatar
CorneliusAlphonse
Award Winner 1
Award Winner 1
Posts: 2988
Joined: Tue Oct 12, 2010 11:28 pm

Re: Keezer Build

Post by CorneliusAlphonse » Sat Dec 08, 2012 12:36 pm

Fishdisease wrote:I could always be convinced to bottle and age some beer at the bottom of the ocean too
:think:
planning: beer for my cousin's wedding
Fermenting: black ipa
Conditioning:
Kegged: barrel barleywine from 2014 - i think i still have this somewhere

User avatar
mr x
Mod Award Winner
Mod Award Winner
Posts: 13764
Joined: Fri Sep 24, 2010 5:30 pm
Location: Halifax/New Glasgow

Re: Keezer Build

Post by mr x » Sat Dec 08, 2012 4:07 pm

IIRC, Charlie Papazian was doing that in a well with mead....?????
